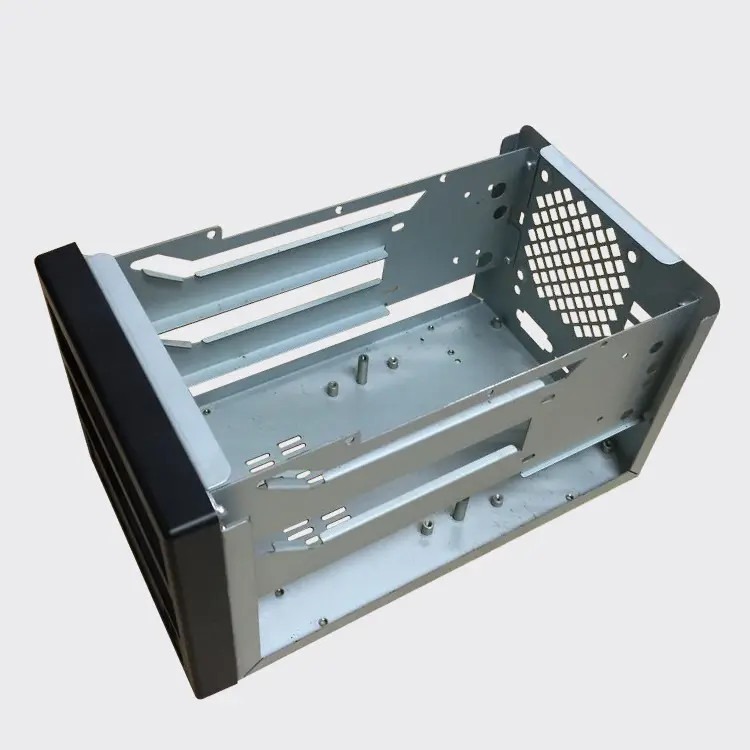

Custom Press Punching Mild Steel Metal Sheet Enclosure Case Metal Fabrication

Sheet metal enclosure Basic requirements of processing technology:

1,In production, sheet metal chassis processing must be carried out according to the drawings and process standards. If when the drawings and process do not conform, the process should prevail.

2,For the process sequence of press riveting and then bending, attention should be paid when arranging the process, too small folded edges will interfere with the press riveting and then bending.

3,When the dimension and tolerance marked on the drawing are not consistent with the dimension and tolerance required by the process, the sheet metal chassis shall be processed according to the process requirements.

4,The shape of the sheet metal chassis is processed according to the positive tolerance of the allowable tolerance, and the shape of the chassis is processed according to the negative tolerance of the allowable tolerance of the sheet metal chassis.

5,The shape of the sheet metal chassis shall be processed according to the negative tolerance of the allowed tolerance, and the positive tolerance shall be strictly prohibited.

6,When the tolerance is not noted in the drawing and process, the processing is done according to GB/T 1804-92m level.

7,Holes without tolerance requirements are processed according to GB/T 1804-92 m-level positive tolerance and deviation.

8,In the processing of sheet metal chassis, when there are tolerance marking requirements for drawings and processes, they should be processed according to the tolerance requirements.

9,All kinds of aluminum alloy panel, the shape is not noted tolerance, according to GB/T 1804-92 f level of negative difference and partial processing.

10, all products due to electroplating or hot dip zinc must open process holes, the process holes should be opened in the front of the product is not visible position.

11,For parts with plating requirements, if it is difficult to press rivet after bending, it should be indicated on the sheet metal chassis processing technology that auxiliary press riveting tooling is required.

12,In case of thick sheet metal folding edge and too small, the part that cannot be folded into place must be left with some margin, and after bending, the excess amount should be punched off or milled off in the process order.

13,Except for special instructions, the burr direction must be on the inner edge of the bend, so the sheet metal chassis processing process should be arranged with a bending diagram or text to describe.

Product parameters:

Nanpi Haoxinyuan Technology Co., Ltd. was established in 2018. We focus on metallic parts OEM and do contract part fabrications to our customers.Our company is located in cangzhou city, hebei Province.Haoxinyuan pay much attention on our product process control and process management. Our company is TS16949 certified.

Haoxinyuan has a professional and experienced working team dedicated to metal parts fabrications. Our strengths and specialties is Processing and production of metal stamping parts, and we provides a one-stop service, including mold production, stamping production, surface treatment and assembly.

Our products sell well in Africa, Middle East, Southeast Asia, Europe, North America and other places. Anyone who works with us is proud of our good after sales service and open attitude.
