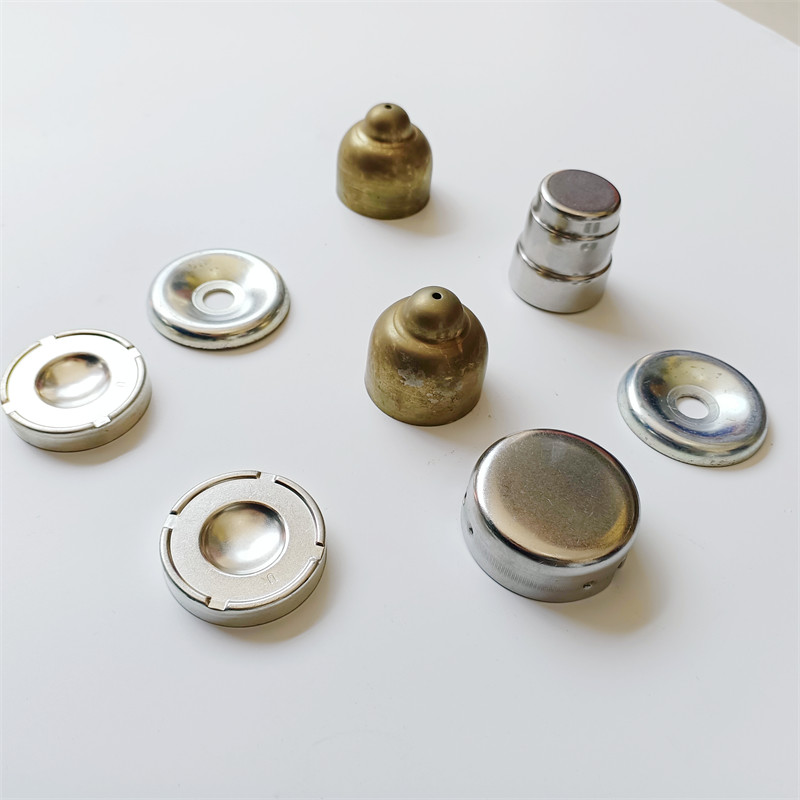

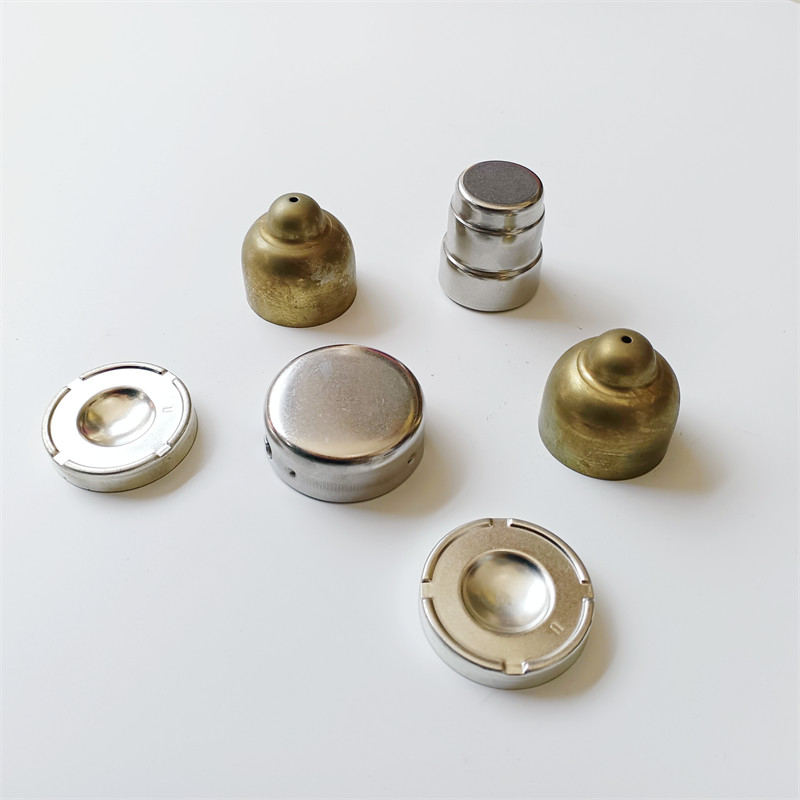

Customized Metal Deep Drawn Parts Stainless Steel Metal Stamping

Deep drawn forming is a stamping process that uses a die to form a flat blank into an open hollow section. As one of the main stamping processes, the drawing process is widely used. The drawing process can be used to manufacture thin-walled parts of cylindrical, rectangular, stepped, spherical, conical, parabolic and other irregular shapes. It can also produce more complex shapes if matched with other stamping and forming processes.

Use stamping equipment for product drawing and forming, including: drawing, redrawing, reverse drawing, thinning and drawing, etc.

Stretching: Using a platen device and using the force of a punch to pull some or all of the flat material into the cavity of a die to form it into a container with a bottom. The treatment that the sidewall of the container is parallel to the stretching direction is a simple stretching treatment, while the stretching treatment of conical (or conical) containers, hemispherical containers and parabolic containers also includes expansion treatment.

Re-stretching process: that is, for deep-drawn products that cannot be completed by one-time stretching process, it is necessary to stretch the formed product after the stretching process to increase the depth of the forming container.

Reverse drawing processing: The workpiece is reversely drawn in the previous process, the inner side of the workpiece becomes the outer side, and the outer diameter becomes smaller.

Thinning and drawing processing: Use a punch to extrude the formed container into a female cavity that is slightly smaller than the outer diameter of the container, thereby reducing the outer diameter of the bottomed container and thinning the wall thickness, which not only removes wall thickness deviation , and can also make the surface of the container smooth.

Product parameters:

Nanpi Haoxinyuan Technology Co., Ltd. was established in 2018. We focus on metallic parts OEM and do contract part fabrications to our customers.Our company is located in cangzhou city, hebei Province.Haoxinyuan pay much attention on our product process control and process management. Our company is TS16949 certified.

Haoxinyuan has a professional and experienced working team dedicated to metal parts fabrications. Our strengths and specialties is Processing and production of metal stamping parts, and we provides a one-stop service, including mold production, stamping production, surface treatment and assembly.

Our products sell well in Africa, Middle East, Southeast Asia, Europe, North America and other places. Anyone who works with us is proud of our good after sales service and open attitude.
