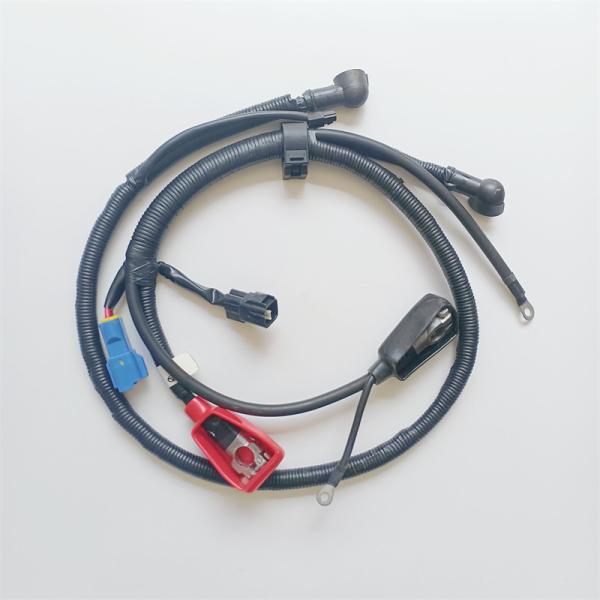

Flexible Cable Auto Battery To Starter Connector Jumper Cable

Selection of Battery To Starter Cable:

Wire: high temperature resistant wire or irradiated wire [QVR-105℃, AEX(F), STX, SGX];
Bellows: Nylon (PA);
Dust jacket: fluorine rubber, EPDM or neoprene;
Tape: cloth base or high temperature resistant tape (gray);
Terminals: matt tin plated; battery clips - copper tin plated or zinc, lead-tin alloy;
Heat shrinkable tube: cross-linked polyolefin (PE), continuous use temperature -55~125℃.

Design Considerations for Battery To Starter Cable:

Due to the large cross-sectional area of the battery wiring harness, poor wire flexibility, and thick terminal material, the direction of the battery wiring harness should reflect the actual loading situation, so as to facilitate the operation.

The cross-sectional area of the positive wire of the battery is 16~95mm2, generally red. The maximum starting current of the starter is provided by the starter manufacturer. The gasoline engine is generally 200~600A, and the diesel engine is as high as 1kA. When selecting the wire, the temperature rise caused by the ambient temperature plus the current in the conductor cannot be higher than the continuous working temperature index of the wire. At 20°C, the voltage difference between the two ends of the battery and the two ends of the starter per 100A shall not exceed the requirements in Table 1.

Product parameters:

Nanpi Haoxinyuan Technology Co., Ltd. was established in 2018. We focus on metallic parts OEM and do contract part fabrications to our customers.Our company is located in cangzhou city, hebei Province.Haoxinyuan pay much attention on our product process control and process management. Our company is TS16949 certified.

Haoxinyuan has a professional and experienced working team dedicated to metal parts fabrications. Our strengths and specialties is Processing and production of metal stamping parts, and we provides a one-stop service, including mold production, stamping production, surface treatment and assembly.

Our products sell well in Africa, Middle East, Southeast Asia, Europe, North America and other places. Anyone who works with us is proud of our good after sales service and open attitude.
