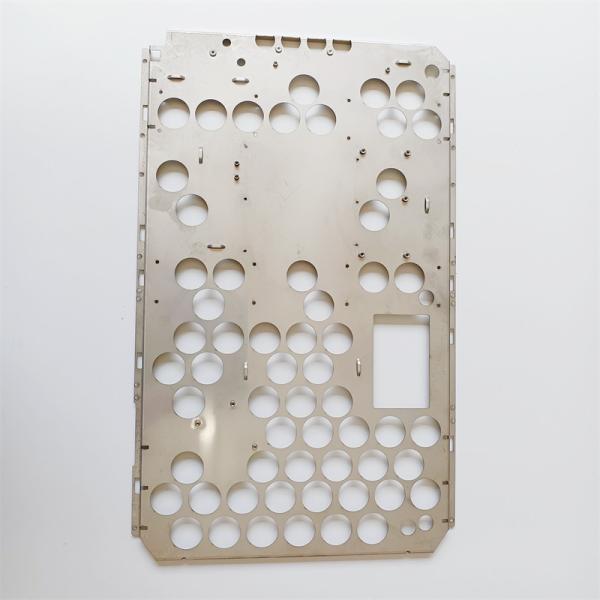

Precision CNC Bending Laser Cutting Metal Stamping Parts

Advantages of Laser Cut Parts

⑴ good cutting quality

Due to the small laser spot, high energy density and fast cutting speed, laser cutting can obtain better cutting quality.

① The laser cutting incision is narrow, the two sides of the incision are parallel and perpendicular to the surface, and the dimensional accuracy of the cut parts can reach ±0.05mm.

② The cutting surface is smooth and beautiful, and the surface roughness is only tens of microns. Even laser cutting can be used as the last process without machining, and the parts can be used directly.

③ After the material is laser cut, the width of the heat-affected zone is very small, and the properties of the material near the cutting seam are hardly affected, and the workpiece deformation is small, the cutting precision is high, the geometric shape of the cutting seam is good, and the cross-sectional shape of the cutting seam is relatively regular. 's rectangle. The comparison of laser cutting, oxyacetylene cutting and plasma cutting methods is shown in Table 1, and the cutting material is a low carbon steel plate with a thickness of 6.2 mm.

(2) High cutting efficiency:

Due to the transmission characteristics of the laser, the laser cutting machine is generally equipped with multiple CNC workbenches, and the entire cutting process can be fully CNC controlled. During operation, only need to change the numerical control program, it can be applied to the cutting of parts of different shapes, both two-dimensional cutting and three-dimensional cutting can be realized.

⑶ fast cutting speed

Using a laser with a power of 1200W to cut a 2mm thick low carbon steel plate, the cutting speed can reach 600cm/min; when cutting a 5mm thick polypropylene resin plate, the cutting speed can reach 1200cm/min. The material does not need to be clamped and fixed during laser cutting, which not only saves tooling and fixtures, but also saves the auxiliary time for loading and unloading.

⑷ Non-contact cutting

There is no contact between the cutting torch and the workpiece during laser cutting, and there is no tool wear. To process parts of different shapes, there is no need to change the "tool", just change the output parameters of the laser. The laser cutting process has low noise, small vibration and no pollution.

⑸ There are many types of cutting materials

Compared with oxyacetylene cutting and plasma cutting, there are many types of laser cutting materials, including metal, non-metal, metal-based and non-metal-based composite materials, leather, wood and fiber. However, for different materials, due to their own thermophysical properties and different absorption rates of laser light, they show different laser cutting adaptability.

Surface Treatment

Nanpi Haoxinyuan Technology Co., Ltd. was established in 2018. We focus on metallic parts OEM and do contract part fabrications to our customers.Our company is located in cangzhou city, hebei Province.Haoxinyuan pay much attention on our product process control and process management. Our company is TS16949 certified.

Haoxinyuan has a professional and experienced working team dedicated to metal parts fabrications. Our strengths and specialties is Processing and production of metal stamping parts, and we provides a one-stop service, including mold production, stamping production, surface treatment and assembly.

Our products sell well in Africa, Middle East, Southeast Asia, Europe, North America and other places. Anyone who works with us is proud of our good after sales service and open attitude.
